AIRTIGHT ZIPPER Hermetic Sealing Technology for Mission-Critical Containment
100% gas-tight and water-tight barrier. IPX8 certified. Engineered with compression-lock TPU technology for the world's most demanding industrial, marine, and protective applications.
Beyond Waterproof:
True Airtight Performance
Conventional water-resistant zippers are designed to shed rain. They are not designed to hold back gas pressure, prevent vapor transmission, or survive sustained submersion. When your product must maintain an uncompromised internal environment--whether underwater, in a contaminated atmosphere, or under pneumatic pressure--you require a fastener that performs as a seal, not just a closure.
Our Airtight Zipper is engineered precisely for these extreme conditions. It features a specialized interlocking tooth profile combined with an integrated TPU (thermoplastic polyurethane) sealing flange. When the zipper is closed and the slider passes, the TPU surfaces compress against each other under pressure, creating a molecularly tight barrier that blocks:
- Liquid water (including high-pressure jets and submersion)
- Air and other gases (up to 80 kPa differential pressure)
- Water vapor and humidity
- Fine dust and particulate matter
- Chemical splashes and aerosols
This is not a coated zipper. It is a fully engineered sealing system designed to maintain integrity where failure is not an option.
The Science of the Seal
How our airtight zipper achieves uncompromised performance through integrated design elements.
Precision Interlocking Teeth
The zipper teeth are molded with a specific geometry that draws the two tape halves into exact alignment, pre-loading the sealing surfaces.
Compressive TPU Sealing Flange
Unlike a flat tape, our zipper features a raised, elastic TPU profile along the inner edge. As the slider closes the chain, it compresses these two TPU profiles together.
Pressure-Activated Seal
The unique advantage of this design is that external pressure (water or air) actually pushes the sealing flanges tighter together, enhancing the seal strength as environmental stress increases.
Certified Performance. Verified Reliability.
Subjected to rigorous quality control and independent verification.
IPX8 Certified
Continuous submersion beyond 1m depth with dynamic flexing.
SGS Test Reports
Verified sealing strength, tensile strength, and material durability.
ASTM D2061
Manufactured and tested to recognized zipper strength standards.
Patent Protection
Unique airtight sealing design protected by issued utility patents.
Technical Specifications
Advanced materials and rigorous testing for ultimate reliability.
Material Science: Advanced TPU Formulation
Premium-grade TPU specifically formulated for long-term sealing applications.
| Material Property | Benefit for Airtight Applications |
|---|---|
| Thermoplastic Polyurethane (TPU) | Superior elasticity ensures consistent compression and rebound over thousands of cycles. |
| Hydrolysis-Resistant Grade (Optional) | For products constantly immersed in water or high-humidity environments, prevents polymer breakdown, extending service life. |
| RF/HF Weldable Backing | Engineered for radio-frequency (RF) or high-frequency (HF) welding. Creates a seamless, hermetic bond to TPU-coated fabrics without stitch holes. |
| Wide Temperature Range | Maintains flexibility and sealing force from -30°C to 70°C (-22°F to 158°F). Does not become brittle in Arctic waters or soft in tropical heat. |
| Chemical Resistance | Resists degradation from salt water, chlorine, mild acids, alkalis, and many industrial chemicals. |
Rigorous Testing Standards
Validated to withstand the stresses of real-world use.
| Test Parameter | Performance Standard | Significance |
|---|---|---|
| Seal Pressure Tolerance | ≥ 80 kPa (0.8 bar) | Maintains gas-tight seal under significant differential pressure. |
| Water Submersion | IPX8 Certified | No leakage after dynamic flexing underwater. |
| Durability (Cycles) | 1,000 - 2,000+ cycles | Sealing performance remains consistent after repeated use. |
| Chain Lateral Strength | ≥ 450 N/inch | Resists bursting forces from internal pressure or external impact. |
| Top Stop Strength | ≥ 250 N | Prevents slider from pulling off the end under heavy load. |
| Peel Adhesion Strength | 1100 N / 5cm | Ensures zipper tape remains securely bonded to the welded seam. |

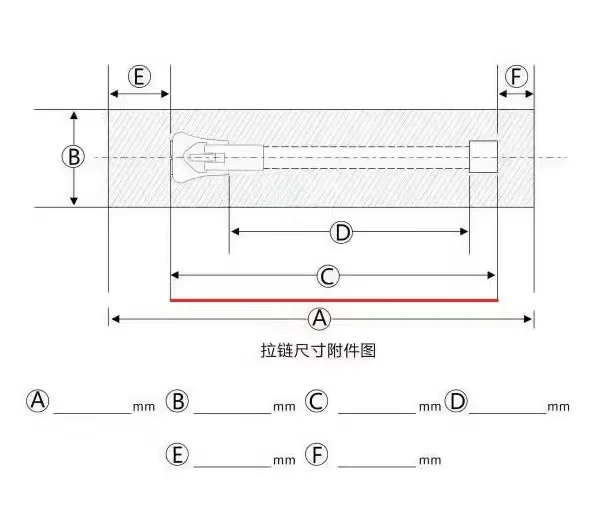

Product Configurations & Specifications
Multiple configurations available to suit diverse product designs.
| Specification | Available Options |
|---|---|
| Zipper Function | Closed-end (one-way), Open-end (separating), Two-way separating |
| Tape Width | 45mm or 70mm (total tape width including sealing flange) |
| Length | Custom cut from 14 cm to 5,000 cm (continuous chain available) |
| Slider Material | Zinc alloy (standard) or engineered plastic (lightweight/corrosion-free) |
| Slider Locking | Auto-lock or non-lock slider options |
| Color | Black (standard); custom color TPU extrusion available for OEM orders |
| Welding Method | RF/HF weldable, hot air weldable, or bondable with specialized adhesives |
| Special Treatments | Anti-static, hydrolysis protection, UV stabilization (upon request) |
Primary Applications
Trusted by engineers and product designers across industries where containment is critical.
Marine & Subsea
- • Diving dry suits & semi-dry suits
- • Immersion & survival suits (SOLAS)
- • Inflatable life rafts & escape slides
- • Subsea equipment protective covers
- • Kayaking skirts & spray decks
Protective Equipment & PPE
- • Level A & B chemical protective suits
- • HAZMAT response gear
- • Radiation protection suits
- • Medical isolation pods
- • Cleanroom garment closures
Inflatable Structures
- • Inflatable boats, kayaks, & SUPs
- • Air beams for temporary shelters
- • Inflatable amusement products
- • Pneumatic splints
- • Medical air mattresses
Industrial & Aerospace
- • Flexible containment for hazardous materials
- • Environmental sealing for electronics
- • Aerospace equipment covers
- • Hyperbaric chamber access zippers
Outdoor & Specialty Gear
- • Waterproof & submersible backpacks
- • Dry bags
- • Soft-sided coolers requiring air-tight insulation
- • Protective covers for sensitive gear
Why Partner With Us for Airtight Zippers
We are specialists in sealing fastener technology, offering complete development partnership and factory-direct advantages.

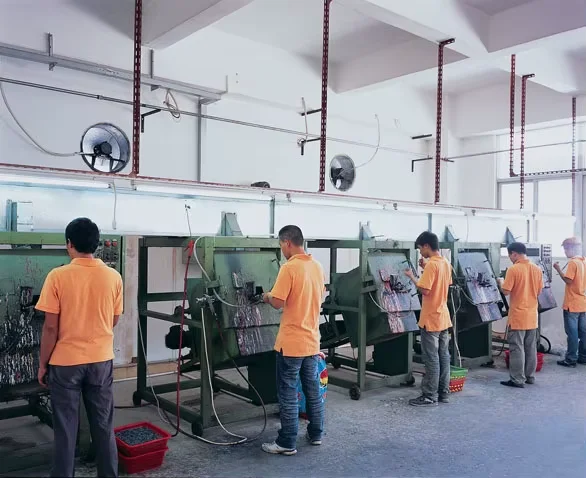

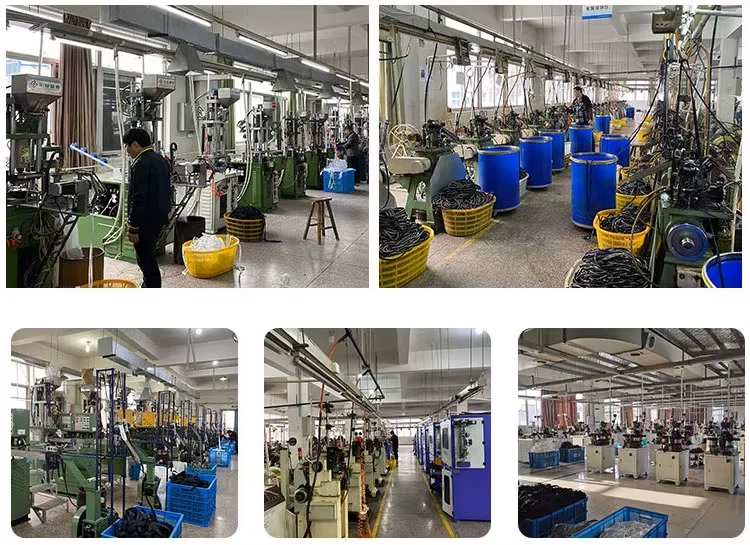

01Specialized Manufacturing Expertise
With over 20 years focused specifically on sealing fastener technology, we are not a general zipper factory. We are specialists. Our engineers understand the unique challenges of creating a reliable gas and water seal in a flexible, wearable format.
02Complete OEM & ODM Capabilities
We work as your development partner, not just a supplier.
- Custom Tooling: Develop custom molds for unique slider shapes or sealing profiles.
- Material Customization: Formulate TPU for specific color, hardness, UV resistance, or flame-retardant needs.
- Assembly Services: Zippers pre-welded into fabric panels or fully assembled.
- Private Label Packaging: Ship directly in branded packaging.
03Quality Assurance You Can Trust

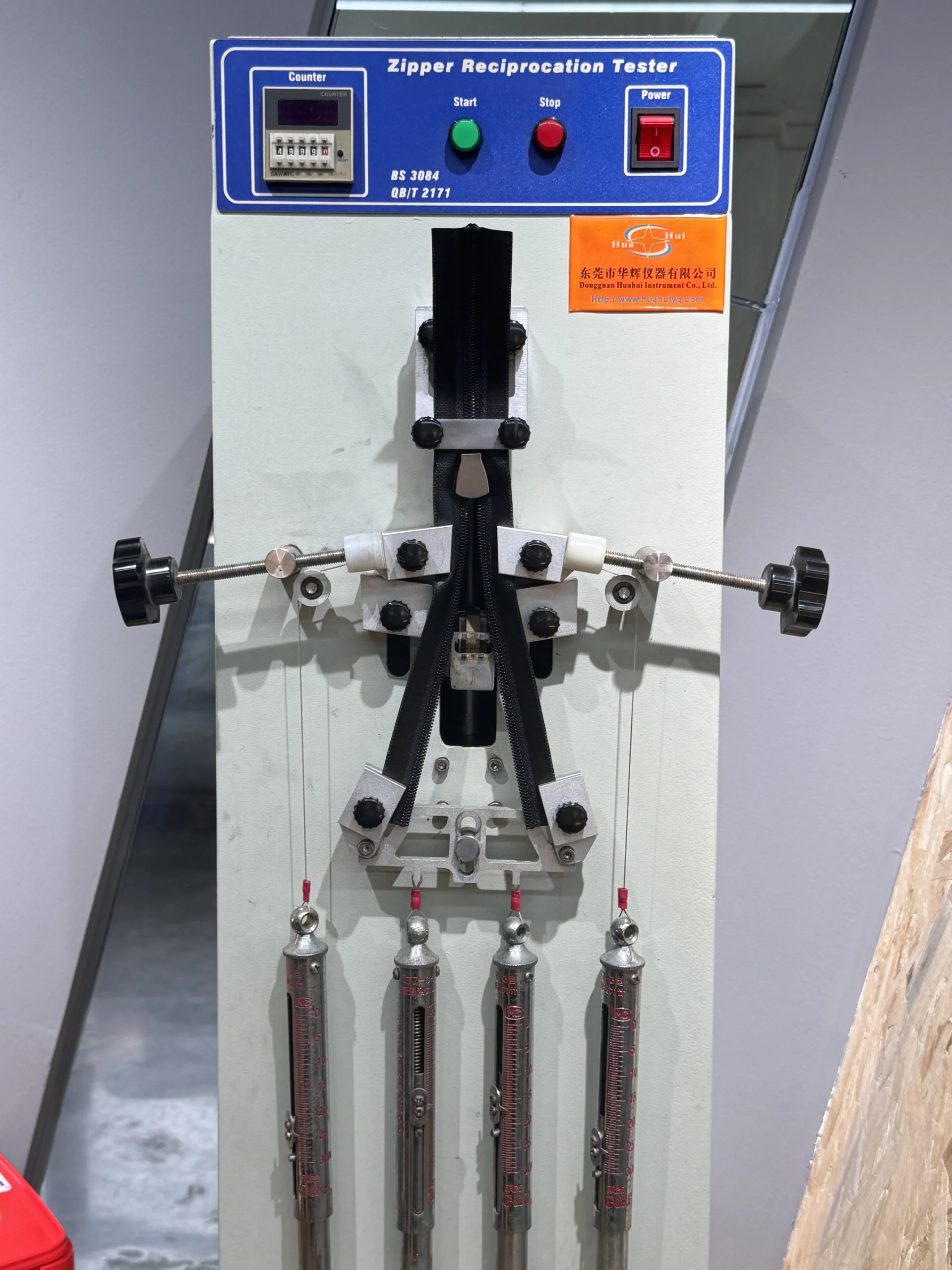

- In-house testing laboratory for pressure decay, tensile strength, and cyclic durability.
- 100% functional air-leak testing available for critical orders.
- ISO 9001 quality management system.
- Full material traceability and batch certification.
04Fast Supply & Factory-Direct Pricing
Standard black airtight zipper samples available for immediate shipment. Custom length cutting and assembly with short lead times. Global shipping via express, air, or ocean freight.
By working directly with our factory, you eliminate distributor markups. Receive specialized, high-performance components at competitive pricing, improving your margins.
Product Advantages
Ingenious Design Enabling Integration and Modular Adaptability
The advanced structural composition of our zippers incorporates a compression-lock TPU flange and robust interlocking tooth design that achieve a fully engineered sealing system rather than relying on surface coatings.
As a leading airtight zipper manufacturer, our configuration options facilitate seamless customization aligned with client specifications.
Combined with weldable backings adaptable to hot air and adhesive bonding methods, this design enables modularity and system-level integration for diverse product assemblies.
Optimized Performance Delivering Usability and Reliability
Our heavy duty waterproof zipper demonstrates exceptional resilience under operational pressures with its pressure-enhanced sealing mechanism and IPX8 certification.
This ensures users in critical fields benefit from consistently secure closures resistant to water, dust, and chemical exposure.
The availability of auto-lock and non-lock slider variants addresses specific usability scenarios, streamlining deployment in complex assemblies.
Furthermore, hydrolysis-resistant materials and customizable TPU extrusion ensure longevity, contributing to reduced maintenance costs and improved lifecycle value for users.
